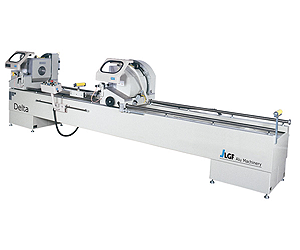

DELTA
SWING
Descriptions:
•
Displacement of the right head by means of a hand wheel
• Sliding of the moving head by means of ricirculating
• ball bearings on rectified and tempered guides
• Radial sliding of the sawing group
• Full protection of the sawblades by means of safety hoods with automatic closing
• Reading of cutting dimensions on high precision metric scale
• Pneumatic heads tilting at 90° a + 45° -45 °
1,5 Kw (2 HP) 3 phase motors - 2800 r.p.m.
• Cutting lenghts 4000/5000 mm
• Max sawblade Ø 400mm
• Sawblade shaft Ø 30 mm
• Working pressure 7 bar
• Overall dimensions 501x99x136
• Weight 750 Kg |

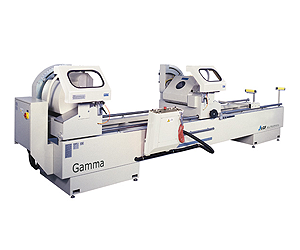

GAMMA
MX
Descriptions:
• Right head displacement by means hand wheel
• Reading of the cutting dimension on high precisio metric • scale with micrometric adjustment
• Sliding of the moving head by means of ricirculating • ball bearings on rectified and tempered guides
• Radial sliding of the sawing group
• Full protection of the sawblades by means of hoods with • automatic closing
• Pneumatic heads tilting at 90° and + 45°
• Possibilty to mount sawblades Ø 500 - 530 - 550 mm
• 2,2 Kw (3 HP) 3 phase motors - 2800 r.p.m.
• Sawblade shaft Ø 30 mm
• Cutting lenghts 4000/5000/6000 mm
• Working pressure 7 bar
• Overall dimensions 524-624-724x139x155 cm
• Weight 1200 - 1350 - 1500 Kg |
|
|
|
|

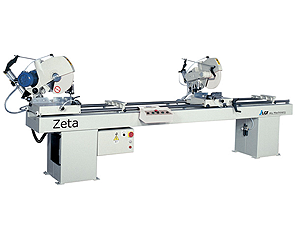

ZETA
Descriptions:
• Right head displacement by means of hand wheel
• Reading of the cutting dimension on high precision metric scale with micrometric adjustment
• Heads desent by means of oleo-pneumatic actuators
• Full protection of the sawblades by safety hoods with automatic closing
• Possibility to choose and select the use of each head separately
• Heads rotation at 45°/90°/-45°
• Heads tilting at 45° (L) - 90°
• Max cutting lenght 35000 mm
• Max. sawblade Ø 400 mm
• Sawblade shaft Ø 30 mm
• 1,5 Kw (2 HP) 3 phase - 2800 r.p.m.
• Working pressure 7 bar
• Overall dimensions 408x96x160 cm
• Weight 500 Kg |

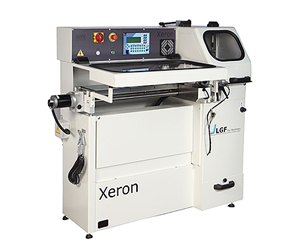

XERON
Descriptions:
• Pendulum movement of the sawing group
• Idro-pneumatic external adjustment of the saw blade feeding
• Bar feeding by means of paneumatic cylinder
• Manual setting of cutting length by means of hand wheel from 0 to 660mm complete with metric scale and magnifying glass
• Fully automatic cutting procedure
• Full protection safety covers with manual closing
• 2,2,Kw (3 HP) 3 phase motor - 2800 r.p.m.
• Working pressure 7 bar
• Overall dimansions 85x158x145 cm
• Weight 306 Kg |
|
|
|
|
|

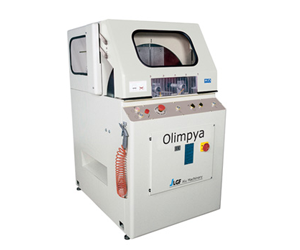

OLIMPYA
Descriptions:
• Radial sliding of the sawing group
• Full protection of the sawblade by means of safety cover with automatic closing
• Pneumatic and automatic tilting of the head at -45°/90°/45°
• Possibility to perform cuts at any intermediate degrees from 30° left up to 30° right, with mechanical end stop
• Outfeed of the sawblade by means of oleo-pneumatic cylinder
• Idro-pneumatic external adjustment of the saw blade feeding
• Possibilty to mount sawblades with Ø 500 - 530 - 550 mm
Sawblade shaft Ø 30 mm
• 2,2 Kw (3 HP) 3 phase motor - 2800 r.p.m.
• Working pressure 7 bar
• Overall dimensions 133x98x156 cm
• Weight 450 kg |

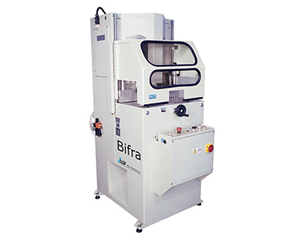

BIFRA
Descriptions:
• Full protection of the sawing group by means of safety cover with automatic closing
• Automatice descend of the sawing carriage
• Working bench traversing by means of hand wheel with mechanical depth index
• Idro-pneumatic external adjustment of the saw blade feeding
• 1,5 Kw (2 HP) 3 phase motors - 2800 r.p.m.
• "V" cut maximum capacity 95 mm
• Max. profile width 110 mm
• Max. profile hight 150 mm
• Working bench dimensions 240x660 mm
• Working pressure 7 bar
• Overall dimensions 78x113x182 cm
• Weight 372 kg |
|
|
|
|
|

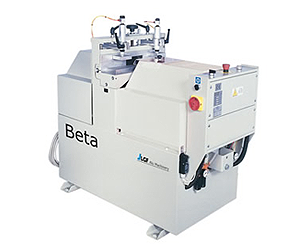

BETA
Descriptions:
• Full protection of the sawing carriage
• Automatic feeding of the sawing group
• Radial sliding of the sawblades
• Fixed inclination of the sawing group at 45°
• Adjustment of the working bench by means of hand wheel
• External idro-pneumatic adjustment of the sawblades feeding
• 1,1 Kw (1,5HP) 3 phase motors - 2800 r.p.m.
• Max. cutting hight capacity 43 mm
• Max. cutting width capacity 140 mm
• Working pressure 7 bar
• Overall dimensions 120x68x110 cm
• Weight 250 kg |

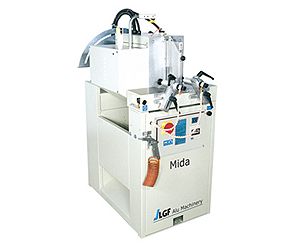

MIDA
M/A
Descriptions:
• Radial sliding of the sawing group
• Semi automatic feeding fo the sawing carriage by means of bottons (manual "M" version)
• Protection of the sawblade by means of adjustable safety guard
• Manual tilting of the head with indexed reference points at -45°/90°/45°
• Manaul tilting and locking of the head up to 22,5° (R-L)
• Easy and fast setting/reading of the intermediate degrees on big size goniometer
• Sawblade max. Ø 400 mm
• Sawblade shaft Ø 30 mm
• 1,5 Kw (2 HP) 3 phase motor - 2800 r.p.m.
• Working pressure 7 bar
• Overall dimensions 69x95x140 cm
• Weight 220 kg |
|
|
|
|
|

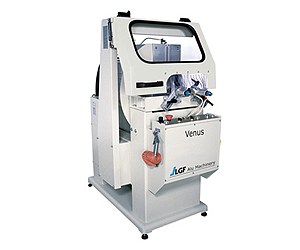

VENUS
Descriptions:
• Radial sliding of the sawing group
• Full protection of the sawblade by means of safety cover with manual closing
• Automatic, pneumatic tilting of the head with indexed positions at -45°/90°/45°
• Possibility to perform, cuts at any intermediate degrees from 30° left to 30° right, with mechanical end stop
• Outfeed of the sawblade by means of oleo-pneumatic cylinder
• Idro-pneumatic external adjustment of the saw blade feeding
• Possibilty to mount sawblades with Ø 500 - 530 - 550 mm
• Sawblade shaft Ø 30 mm
• Overall dimensions 76x135x156 cm
• Weight 330 kg |

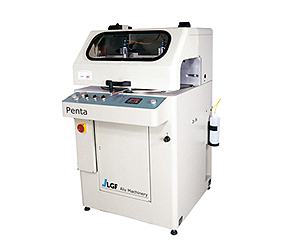

PENTA
Descriptions:
• Rising of the sawblade by means of oleo-pneumatic cylinder
• Full protection of the sawblade by means of safety cover with manual closing
• Suction hood connection
• Digital display for angled cuts
• Locking of rotating bench by mean of high precision indexed pins at -45°/90°/45°
• Possibility to perfom any intermediate angled cut between 80° left and 80° right, with pneumatic brake locking device
• Possibility to rip from 0 to 100 mm by means of movable rear fence (optional)
• Idro-pneumatic external adjustment of the saw blade feeding
• Possibility to mount sawbldes with Ø 500-530-550 mm
• Sawblade shaft Ø 30 mm
• 2,2, Kw (3 HP) 3 phase motor - 2800 r.p.m.
• Working pressure 7 bar
• Overall dimensions 85x103x145 cm
• Weight 350 kg |
|
|
|
|
|

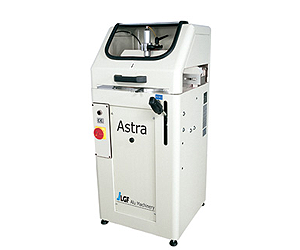

ASTRA
M
Descriptions:
• Predetermined positioning of the cutting angles at -45°/90°/45 with blocking of the rotating bench by means of high precision pins
• Possibility to perform cuts at any intermediate degree from 80° to -80° by means of mechanical stop on the rotating bench
• Full protection of the sawblade by means of safety cover with manual closing (CE version)
• Easy and light rising of the sawblade by means of a manual lever (with 2 bottons on "A" version)
• Possibility to perform ripping operations from 0 to 60 mm by menas of rear movable fence (optional)
• 1,1 Kw (1,5HP) 3 phase motor - 2800 r.p.m.
• Max. sawblade Ø 400mm
• Sawblade shaft Ø 30 mm
• Working pressure 7 bar
• Overall dimensions 64x78x125 cm
• Weight 120 kg |

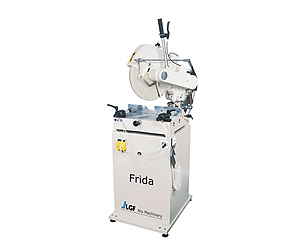

FRIDA
Descriptions:
• Manual down stroking of the head by means of ergonomic safety lever
• Blade protection cover with automatic closing by means of lever
• Head tilting from 90° to 45° on the left hand side with mechanical locking system
• Head rotation on its own axis at -45° / 45° with mechanical locking system
• Manual locking system of working bench at any intermediate degree
• Rotating working bench
• Sawblade Max. Ø 400 mm
• Sawblade shaft Ø 30 mm
• 2,2 Kw (3 HP) 3 phase motor - 2800 r.p.m.
• Overall dimensions 83X56X144 cm
• Weight 138 Kg |
|
|
|
|
|

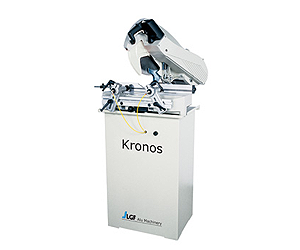

KRONOS
Descriptions:
• Manual down stroking of the head by means of ergonomic safety lever
• Blade protection cover with automatic closing by means of lever
• Head tilting from 90° to 45° on the left hand side with mechanical locking system
• Head rotation on its own axis at -45° / 45° with mechanical locking system
• Manual locking system on working bench at any intermediate degree
• Rotating working bench
• Sawblade Ø 400 mm
• Sawblade shaft Ø 30 mm
• 2,2 Kw (3 Hp) 3 phase selfbraking motor - 2800 r.p.m.
• Working pressure 7 bar
• Overall dimensions 70x70x132 cm
• Weight 90 kg. |

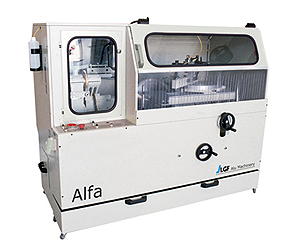

ALFA
Descriptions:
• Machine totally enclosed
• Sliding of the sawing carriage by menas of ricirculating balls bearings on rectified and temperated guides
• Clylinder stroke 700mm
• Adjustable feeding of the sawing carricage 4-10 mt/min
• Blades tilting range +/- 45° by means of hand wheel
• Possibility to preform cuts at any intermediate degrees
• Adjustable working bench in terms of hight and depth by means of hand wheels
• Tilting fence on the working bench at 45°/90°/-45°
• Max. profile hight 155mm
• Max. profile width 250 mm
• Max. depth of cut in horizontal 135 mm
• Max. depth of cut in vertical 160 mm
• 2,2 Kw (3 HP) self braking motors - 2800 r.p.m.
• Sawblade's bore Ø 30 mm
• Working pressure 7 bar
• Overall dimensions: 110x215x176 cm
• Weight: 650 kg |
|
|
|
|
|
KRONOS
Descriptions:
• Manual down stroking of the head by means of ergonomic safety lever
• Blade protection cover with automatic closing by means of lever
• Head tilting from 90° to 45° on the left hand side with mechanical locking system
• Head rotation on its own axis at -45° / 45° with mechanical locking system
• Manual locking system on working bench at any intermediate degree
• Rotating working bench
• Sawblade Ø 400 mm
• Sawblade shaft Ø 30 mm
• 2,2 Kw (3 Hp) 3 phase selfbraking motor - 2800 r.p.m.
• Working pressure 7 bar
• Overall dimensions 70x70x132 cm
• Weight 90 kg. |

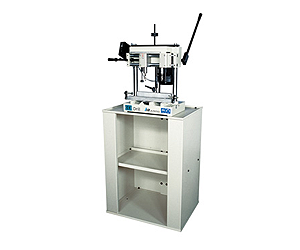

DRILL
Descriptions:
• Min. interaxis between drilling bits 29 mm
• Max. interaxis between drilling bits 180 mm
• Fast and easy setting of the drilling hight
• 0,37 Kw (0,5 Hp) single phase motor - 2800 r.p.m.
• Drill bits chuck Ø 10 mm
• Overall dimensions 50x46x50 cm
• Weight 36 kg |
|
|
|
|
|

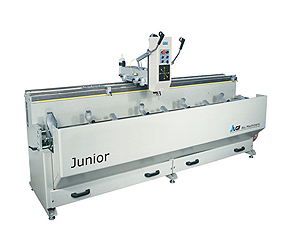

JUNIOR
Descriptions:
• Particularly indicated for working on aluminium, light alloys, PVC profile and stainless steel
• Innovative leverage system for easy and light dispacement of the head
• Equipped with electro-spindle with variable speed
• Rotating working bench with pneumatic positioning by means of selector at 0°/90 °/-90 °
• Possibility to perform machining at intermediate degrees by means of mechanical end stop
• 1,5 Kw (2 HP) 3 phase motor
• Working capacity with router bit L= 40mm 2500x250x210
• Overall dimensions: cm 315x105x173 cm
• Weight: 690 kg |

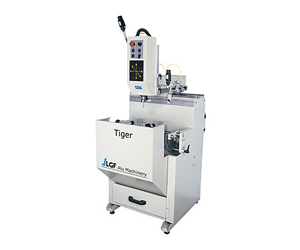

TIGER
Descriptions:
• Particularly suitable for aluminium, light alloy, PVC and stainless steel profiles
• Equipped with rotating bench with pneumatic positiong by means of selector at 0° and -90°
• Possibility to perform operations at any intermediate degrees with manual positioning and mechanical end stop on goniometer
• Possibility to adjust spindle revolitions according to the type of material used
• Easy and light displacement of the head by means of innovative levearage system
• 1,5 Kw (2 HP) 3 phase motor
• Working capacity 450x250x210 mm
• Working pressure 7 bar
• Overalla dimensions 102x92x165 cm
• Weight 271 Kg |
|
|
|
|
|

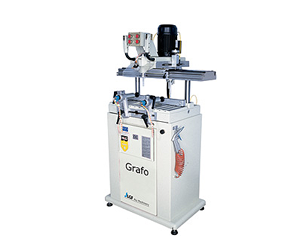

GRAFO
Descriptions:
• Copy router for passing trough operations
• Semi-automatic head desent/rising by mens of buttons
• Automatic head locking at tany position
• Big dimesion template
• Profile depth end stop with 6 presettings revoler device
• 1,1 Kw (1,5HP) 3 phase motor - 2800 r.p.m.
• Spindle revolutions 14.000/min
• Vertical stroke 160 mm
• Longitudinal stroke 565 mm
• Transversal stroke 120 mm
• Working pressure 7 bar
• Overall dimensions 57x82x130 cm
• Weight 130 kg |

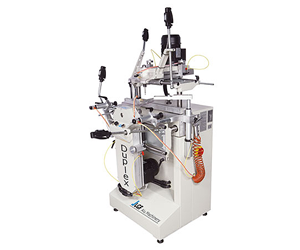

DUPLEX
Descriptions:
• Particularly siutable for light alloy, PVC and stainless steel profiles
• Machine equipped with two indipendent motors
• Easy and fast settings
• Possibility to work on 4 sides without moving the profile
• 1,1 Kw (1,5 HP) 3 phase motors- 2800 r.p.m.
• Spindle revolution 14.000/min
• Working pressure 7 bar
• Overall dimensions 80x85x165 cm
• Weight 150 kg
• Working capacity
• VERTICAL HEAD
• Vertical stroke 110 mm
• Longitudinal stroke 220 mm
• Transversal stroke 115 mm
• HORIZONTAL HEAD
• Vertical stroke 115 mm
• Longitudinal stroke 345 mm
• Transversal stroke 200 mm |
|
|
|
|
|

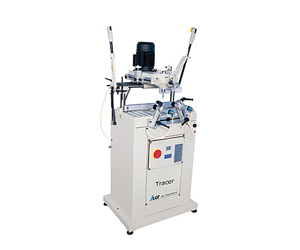

TRACER
Descriptions:
• Particularly suitable for aluminium, light alloy and PVC profiles
• 1,1 Kw (1,5 HP) 3 phase - 2800 r.p.m.
• Spindle revolutions 14.000/min
• Vertical stroke 110 mm
• Longitudinal stroke 220 mm
• Transversal stroke 115 mm
• Working pressure 7 bar
• Overall dimensions 70x54x157 cm
• Weight 118 kg |

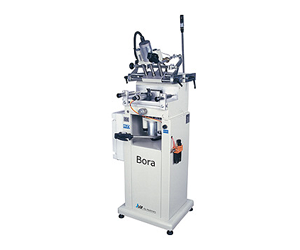

BORA
Descriptions:
• BORA 11 - Nr. 1 oblique (60°) working unit
• BORA 12 - Nr. 2 working units 1 oblique (60°) + 1 vertical or horizontal (choice)
• BORA 13 - Nr. 3 working untis 1 oblique (60°) + 1 vertical + 1 horizontal
• Accurate and easy settings by means of graduated sectors
• A. CC. motors 200 W 48 V.CC IP 54
• Spindle revolutions 16500/min
• Spindle collet Ø 8 mm
• Max. profile width 105 mm
• Max. profile hight 120 mm
• Working pressure 7 bar
• Overall dimensions 62x76x160 cm
• Weight 90 kg |
|
|
|
|
|

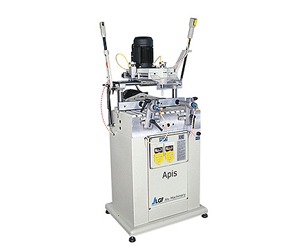

APIS
M/A
Descriptions:
• Copy router for passing through operations particularly suitable for PVC profiles
• Automatic feeding of the horizontal boring head (only on "A" version)
• 1,1 Kw (1,5 HP) three phase motor - 2800 r.p.m.
• Spindle revolution 14.000/min
• Working pressure 7 bar
• Overall dimensions 77x68x150 cm
• Weight 150 kg
• Working capacity :
• VERTICAL HEAD
• Vertical stroke 110 mm
• Longitudinal stroke 220 mm
• Transversal stroke 115 mm
• HORIZONTAL BORING HEAD
• Router bits interaxis 22mm
• Horizontal bits stroke 50 mm
• Vertical bits stroke 6-80 mm |

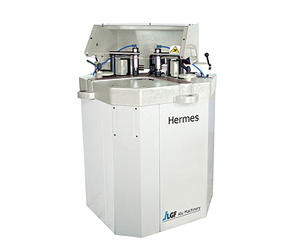

HERMES
Descriptions:
• Machine suitable for crimping of all aluminium profile ranges
• Crimping strenght 3500 Kgp
• Punches stroke 12 mm
• Max. crimping hight 120 mm
• Backing block stroke 120 mm
• Side adjusting range 40 mm
• Working pressure 7 bar
• Max. working pressure 10 bar
• Overall dimensions 100x100x135 cm
• Weight 380 Kg |
|
|
|
|
|

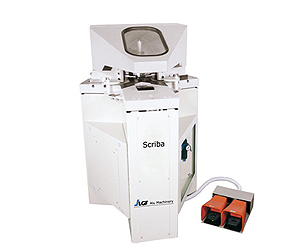

SCRIBA
Descriptions:
• Machine suitable for crimping of all aluminium profile ranges
• Crimping strenght 3500 Kgp
• Punches stroke 12 mm
• Max. crimping hight 120 mm
• Backing block stroke 120 mm
• Side adjusting range 40 mm
• Working pressure 7 bar
• Max. working pressure 10 bar
• Overall dimensions: 1070x1250x1170 mm
• Weight 310 Kg |

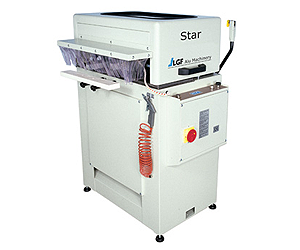

STAR
Descriptions:
• Semi automatic feeding of the milling group by means of bottons (manual on "M" version)
• Full protection of the milling group by means of safety cover with manual closing
• Possibility to perform milling operations at any degrees from 45° to 90° L/R
• Easy and quick pneumatic change of the shaft
• 1,1 Kw (1,5 HP) 3 phase - 2800 r.p.m.
• Cutter block shaft Ø 32 mm
• Horizontal shaft stroke 400 mm
• Cutter blocks max. Ø 160 mm
• Working pressure 7 bar
• Overall dimansions 96x66x121 cm
• Weight 165 kg |
|
|
|
|
|
GRAFO
Descriptions:
• Copy router for passing trough operations
• Semi-automatic head desent/rising by mens of buttons
• Automatic head locking at tany position
• Big dimesion template
• Profile depth end stop with 6 presettings revoler device
• 1,1 Kw (1,5HP) 3 phase motor - 2800 r.p.m.
• Spindle revolutions 14.000/min
• Vertical stroke 160 mm
• Longitudinal stroke 565 mm
• Transversal stroke 120 mm
• Working pressure 7 bar
• Overall dimensions 57x82x130 cm
• Weight 130 kg |
DUPLEX
Descriptions:
• Particularly siutable for light alloy, PVC and stainless steel profiles
• Machine equipped with two indipendent motors
• Easy and fast settings
• Possibility to work on 4 sides without moving the profile
• 1,1 Kw (1,5 HP) 3 phase motors- 2800 r.p.m.
• Spindle revolution 14.000/min
• Working pressure 7 bar
• Overall dimensions 80x85x165 cm
• Weight 150 kg
• Working capacity
• VERTICAL HEAD
• Vertical stroke 110 mm
• Longitudinal stroke 220 mm
• Transversal stroke 115 mm
• HORIZONTAL HEAD
• Vertical stroke 115 mm
• Longitudinal stroke 345 mm
• Transversal stroke 200 mm |
|
|
|
|
|
SCRIBA
Descriptions:
• Machine suitable for crimping of all aluminium profile ranges
• Crimping strenght 3500 Kgp
• Punches stroke 12 mm
• Max. crimping hight 120 mm
• Backing block stroke 120 mm
• Side adjusting range 40 mm
• Working pressure 7 bar
• Max. working pressure 10 bar
• Overall dimensions: 1070x1250x1170 mm
• Weight 310 Kg |
STAR
Descriptions:
• Semi automatic feeding of the milling group by means of bottons (manual on "M" version)
• Full protection of the milling group by means of safety cover with manual closing
• Possibility to perform milling operations at any degrees from 45° to 90° L/R
• Easy and quick pneumatic change of the shaft
• 1,1 Kw (1,5 HP) 3 phase - 2800 r.p.m.
• Cutter block shaft Ø 32 mm
• Horizontal shaft stroke 400 mm
• Cutter blocks max. Ø 160 mm
• Working pressure 7 bar
• Overall dimansions 96x66x121 cm
• Weight 165 kg |
|
|
|
|
|

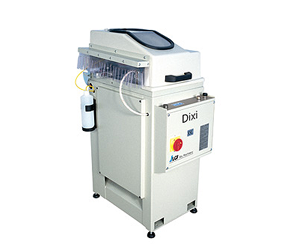

DIXI
Descriptions:
• Full protection of the milling group by means of safety cover with manual closing
• Quick and easy pneumatic change of the cutter block shaft
• Possibility to perform end milling operations at any degrees from 90° to 45° both right and left side
• 1,1 Kw (1,5 HP) 3 phase motor - 2800 r.p.m.
• Cutter block shaft Ø 32 mm
• Horizontal shaft stroke 290 mm
• Mex. cutter block Ø 120 mm
• Working pressure 7 bar
• Overall dimensions 61x82x123 cm
• Weight 95 kg |

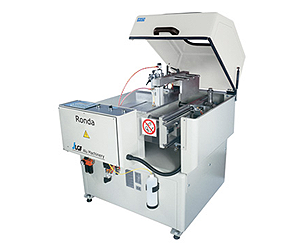

RONDA
Descriptions:
• Particularly suitable to perform end milling operations on round shaped profiles (dished or convex)
• Equipped with CNC control unit c/w monochrome screen • 120x40 mm and industrial integrated keyboard
• USB port to upload cutting lists and/or to save programs
• Full protection of the milling group by means of saftey cover with manual closing
• Fast and userfriendly system to detect profile depth
• 1,1 Kw (1,5 HP) 3 phase motor - 2800 r.p.m.
• Cutter block shaft Ø 32 mm
• Shaft horizontal stroke 400 mm
• Transversal stroke 180 mm
• Min. copying radius 350 mm
• Max. cutter block Ø 160 mm
• Working pressure 7 bar
• Overall dimensions 100x120x145 cm
• Weight 400 kg |
|
|
|
|
|

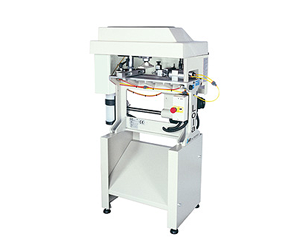

LOLA
Descriptions:
• Copy router for passing trough operations
• Semi-automatic head desent/rising by mens of buttons
• Automatic head locking at tany position
• Big dimesion template
• Profile depth end stop with 6 presettings revoler device
• 1,1 Kw (1,5HP) 3 phase motor - 2800 r.p.m.
• Spindle revolutions 14.000/min
• Vertical stroke 160 mm
• Longitudinal stroke 565 mm
• Transversal stroke 120 mm
• Working pressure 7 bar
• Overall dimensions 57x82x130 cm
• Weight 130 kg |

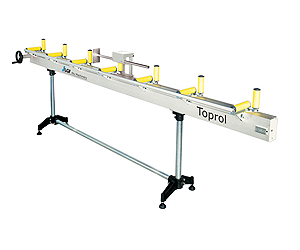

TOPROL
Descriptions:
• Desplacement of end stop by means of hand wheel
• Reading of the quote on metric scale with magnifier
• Lenghts 3/4 metri
• Dimensions:
• TOPROL 3 - 300x3620x400 mm
• TOPROL 4 - 300x4620x400 mm
• Weight 60/70 Kg |
|
|
|
|
|

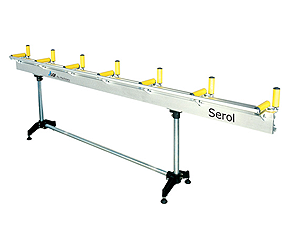

SEROL
Descriptions:
• SEROL 3 50 Kg. 300x3450x400 mm
• SEROL 4 60 Kg. 300x4450x400 mm |

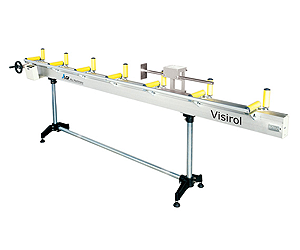

VISIROL
Descriptions:
• End stop displacement by menas of hand wheel
• Reading of the quote on digital display
• Lenghts 3/4 meters
• Dimensions:
• VISIROL 3 - 300x3620x400 mm
• VISIROL 4 - 300x4620x400 mm
• Weight60/70 Kg |
|
|
|
|
|

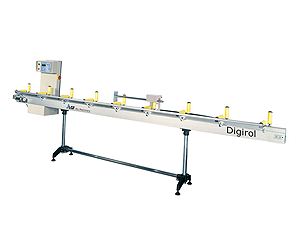

DIGIROL
Descriptions:
• Motorized and programmable end stop
• Machine equipped with electronic positioner capable to store up to 99 differnt cutting lenghts, c/w sequences counter, 120x40mm monochrome monitor with integrated industrial keyboard
• USB port to upload cutting lists
• Max. cutting lenghts 3000/4000 mm.
• DIGIROL 3
• Overall dimensions 47x362x141 cm
• Weight 70 Kg
• DIGIROL 4
• Overall dimensions 47x462x141 cm
• Weight 75 Kg. |

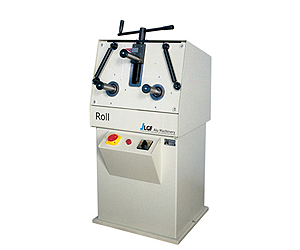

ROLL
Descriptions:
• Particurarly suitable for light alloy, aluminium, and stainless steel profiles
• Possibility to perform arches and curves
• Macchine equipped with double moto reducers
• 1,1 Kw (1,5 HP) 3 phase motor
• Shafts Ø 35 mm
• Overall dimensions 62x63x127 cm
• Weight 182 kg |
|
|
